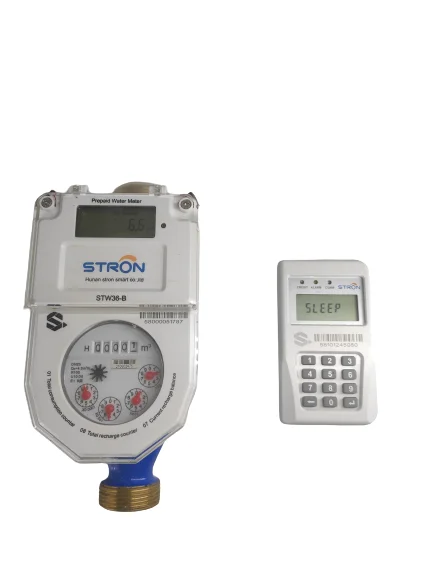

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Name: Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life
Brand: Stron
Price: 76 USD

Quality Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life for sale

Brand Name : Stron

Place of Origin : Hunan, China

Model Number : STW36-B

Certification : ISO9001,ISO14001

MOQ : 30

Price : $76-84

Protection Class : IP68

Battery Life : 8 years

Display Type : LCD

Water Pressure : 16MPA

Charge Mode : Step price Supports

Anti-Tamper Protection : Magnetic field protection

Pressure Loss : <0.06Mpa

Communication Options : LORA RF or Bluetooth 4.0

Maximum Working Pressure : 16Bar

Maximum Pressure Loss : 0.6Bar

Maximum Temperature : 50℃

Measurement Error : 5% (Q1≦Q≦Q2), 2% (Q2≦Q≦Q4)

Body Material : Brass

Non-return Valve : Included

Flow Rate Ratio : 100 (Q3/Q1)

Contact Now

Product Description

The water meters is STS standard, Token type prepaid meter. It has high quality with IP68 waterproof, allowing to operate in harsh environments.The Multi-Jet construction make the meter running Normally in muddy water never stuck. It has low pressure loss(<0.06Mpa), and the accuracy always better after 10years.

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Prepaid Split Keypad Type Brass Water Meter+CIU

Specifications

Function	Details
Prepayment	STS Standard, recharge by input 20digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode
Non-return valve	Non-return valve inside for preventing back-flow
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff	Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection	Non- Revenue gas (Overdraft) can be collected day by day or month by month
Communication	The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry	Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code

Strong Point

Metrological Parameters of different size

Size			DN15mm 1/2"	DN20mm 3/4"	DN25mm 1"
Overload flow rate Q4			3.13	5	7.875
Permanent l flow rate Q3			2.5	4	6.3
Transitional flow rate Q2			0.04	0.064	0.1
Minimum flow rate Q1			0.025	0.04	0.063
Ratio ”R” Q3/Q1			100	100	100
Maximum working pressure			16Bar	16Bar	16Bar
Maximum pressure loss			0.6Bar	0.6Bar	0.6Bar
Maximum reading			99999	99999	99999
Max temperature			50℃	50℃	50℃
Error	Q1≦Q≦Q2	5%	5%	5%
Error		Q2≦Q≦Q4	2%	2%	2%

Meter Dimensions

Size	DN15 1/2"	DN20 3/4"	DN25 1"
Length(L)	165/190	190	225/260
Width(W)	99	99	103
Height(H)	104	106	114
Connecting Thread	G3/4B	G1B	G1-1/4B

Vending Process

Operation of vending software

1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

Option 1: Vending at local sales point

Option 2: Vending with the third part APP/mobile payment /billing system with API

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

Company Profile

Hunan Stron Smart Co., Ltd

Hunan Stron Smart Co., Ltd is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.

Stron has kept long-term cooperation with partners from over 60 countries andregions including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, Cameroon,etc.
